Portable Wireless Series

Portable Receiver&Transmitter

Wireless Micropone

Product Parameters

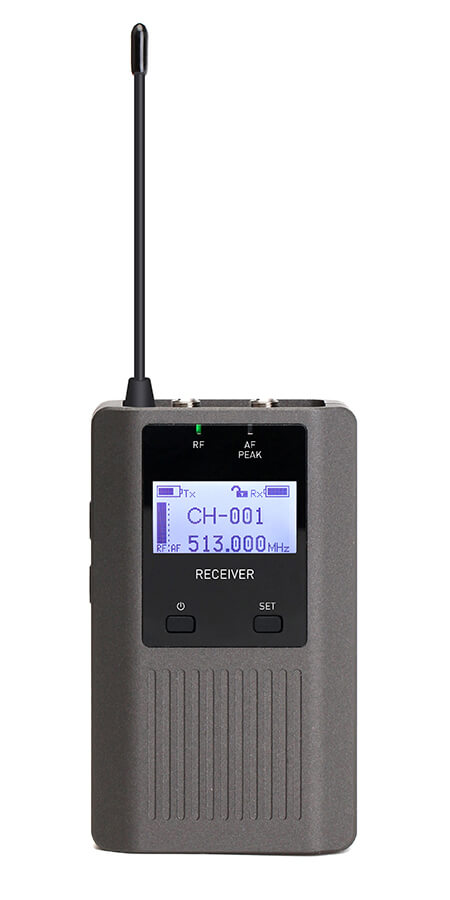

AWM-U1A
Portable Receive

Material:Aluminum Alloy
Channel:100CHs(250KHz)
Wireless Frequency Range:UHF500~900MHz
Frequency Response:60Hz~15KHz
Signal/Noise:≥85dB
Stray Radiation:<-60dB
Audio T.H.D:<0.5%@1KHz
High pass filter:
              Low:-75Hz;
              high:-150Hz
Audio Output:Mono
Display Screen:LCD
Working Distance:
              in line-of-sight area:120m;
              in barrier area:60m
Power: Type-C 3.5 hours full,DC 5V@1000mA
Battery:Built-in li-ion battery,3.7V,1800mA/Hour
Working time:10小时 Hours
Dimension:96x60x19mm
Operating Temperature:0-50°

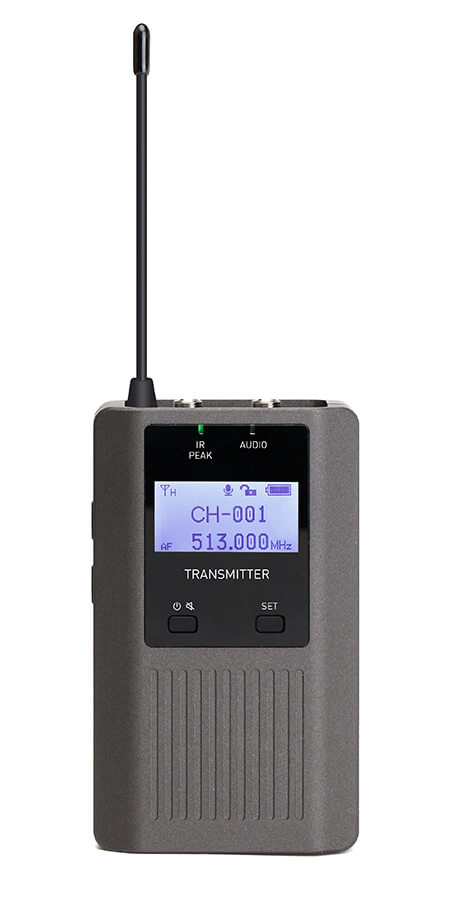

AWM-U1B
Portable Transmitter

Material:Aluminum Alloy
Channel:100CHs(250KHz)
Wireless Frequency Range:UHF500~900MHz
Frequency Response:60Hz~15KHz
Transmitting Power:
              Low:10mW,
              High:30mW
Stray Radiation:<-60dB
Audio T.H.D:<0.5%@1KHz
High pass filter:
              Low:-75Hz;
              high:-150Hz
Audio Output:Mono (left and right channels)
Operating Temperature:0-50°
Same working distance / power supply / size as receiver

AWM-U1

Optional Transmitter

KT-90
KT-90
